BDS Suspension

BDS 2 Inch Lift Kit | Coil Spring | Jeep Wrangler JK (12-18) 4-Door

SKU: BDS1430H
UPC: 840416410815
Condition: New
$633.60

Free Shipping to Continental US

Product Details

Important Notes

  1. 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
  2. This kit is FMVSS No.126 Compliant

Features

  • ProRide coil springs offer improved ride quality and more articulation
  • Extended sway bar links for improved offroad flex
  • Lower cam locks to correct caster for alignment
  • Bump stop spacers to prevent harsh bottom outs
  • Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
  • Allows clearance for 33" tires

Manufacturer's Description

Improve the ride and style of your 2012-2018 Jeep Wrangler JK 4 Door with this 2-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33" tires at an affordable price.

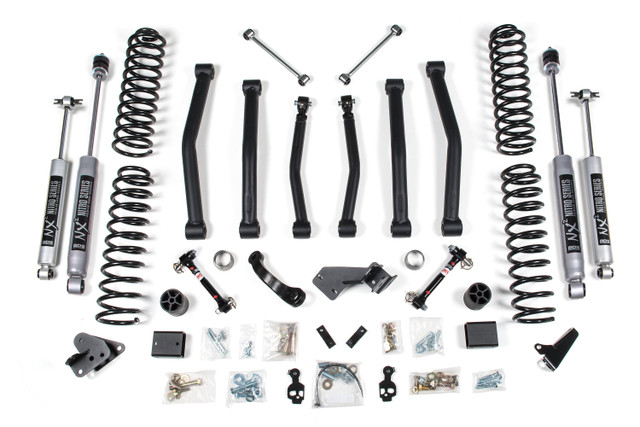

The lift kit includes front and rear BDS Pro-Ride Coil Springs, bump stop extensions, front lower control arm cam bolts and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Options

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
Shipping & Returns
Fitment

Product Specs

SKU: BDS1430H
UPC: 840416410815
Condition: New
Front Lift Height: 2
Front Lift Method: Coil Spring
Rear Lift Height: 2"
Rear Lift Method: Coil Spring
Recommended Tires & Wheels: 33 x 12.5 with 17 x 9 and 4.5 in. backspace
Shocks Included: Yes
Part Type: Suspension Lift Kit

Installation Details

Installation Time 4 hrs
Installation Difficulty Moderately Easy
Installation Tools Basic Hand Tools, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands
