BDS Suspension

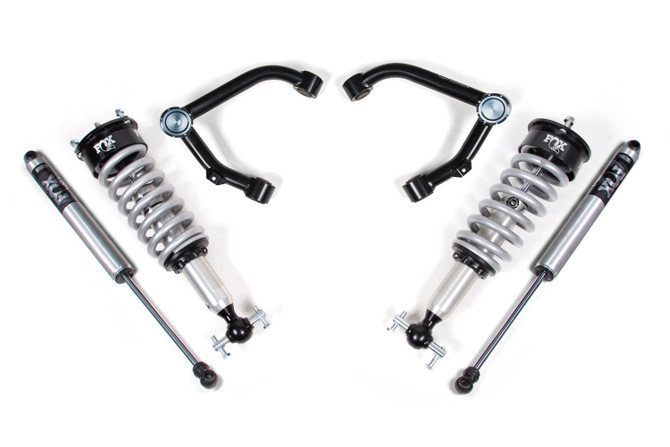

BDS 2 Inch Leveling Kit | FOX 2.0 Coilover | Chevy Silverado or GMC Sierra 1500 (07-18) 4WD

SKU: BDS757FSL
UPC: 840416421279
Condition: New
$2,430.75

Free Shipping to Continental US

Important Notes

  1. 33x12.50 tires will require weld on steering stop, also it requires inner fender well modification to clear this width tire
  2. Will Not fit MagneRide magnetic ride control equipped models

Features

  • FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

Manufacturer's Description

Level out your 2007-2018 Chevy Silverado and GMC Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front, the lift kit includes FOX 2.0 Performance Series coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coilover Shocks

These FOX 2.0 Performance Series coilovers deliver impressive damper performance, providing a great ride on and off-road, and are designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for improved heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, a 5/8" hard-chrome-plated heat-treated alloy shaft, and come preloaded with springs and a top plate for easy installation.

HD Upper Control Arms

Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation. At the other end, a quality greaseable ball joint ensures smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.

Product Specs

SKU: BDS757FSL
UPC: 840416421279
Condition: New
Front Lift Height: 2
Front Lift Method: Coil-Over
Rear Lift Height: 0"
Rear Lift Method: Stock
Recommended Tires & Wheels:

285 / 70 with 17 x 9 and 4.5 in. backspace 285 / 70 with 20 x 9 33 x 12.5 with 20 x 9 and 4.5 in. backspace

285 / 70 with 20 x 9 <li>285 / 70 with 17 x 9 and 4.5 in. backspace</li> <li>285 / 70 with 20 x 9 <li>33 x 12.5 with 20 x 9 and 4.5 in. backspace</li></li>
Shocks Included: Yes
Part Type: Suspension Lift Kit

Installation Details

Installation Time 3-4 hrs
Installation Difficulty Moderate
Installation Tools Welding Equipment

Downloads

Installation Instructions Click here to Download
