BDS Suspension

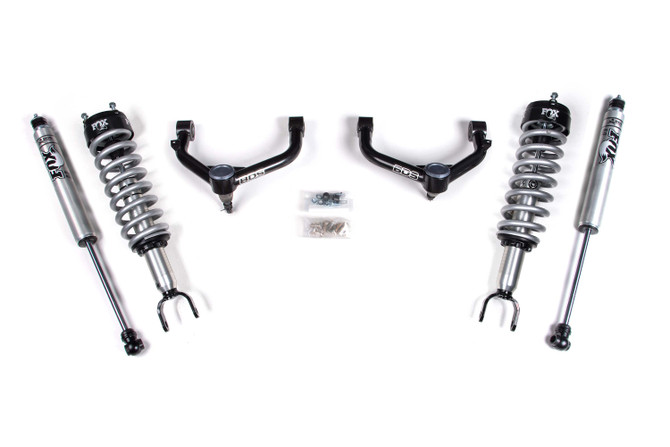

BDS 2 Inch Leveling Kit | FOX 2.0 Coilover | Ram 1500 (13-18) 4WD BDS1665FSL

SKU: BLDV-BDS1665FSL
UPC: 840416403701
Condition: New
$2,430.75

Free Shipping to Continental US

Important Notes

  1. The stock wheel/tire can be reinstalled. Stock wheel with wider 12.50 tires cannot due to clearance issue to UCA at full steering lock.
  2. Vehicles equipped with Offroad or Rebel Package will not achieve the full 2" of lift, net ride height change will be around 1" above stock.
  3. Will not fit adjustable air suspension equipped models.

Features

  • FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

Manufacturer's Description

Level out your 2013-2018 RAM 1500 4WD truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front, the lift kit includes FOX 2.0 Performance Series coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks

These FOX 2.0 Performance Series coilovers offer impressive damper performance, providing a great ride on and off-road, and are designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for improved heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, a 5/8" hard-chrome-plated heat-treated alloy shaft, and come preloaded with springs and a top plate for easy installation.

HD Upper Control Arms

Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation. At the other end, a quality greaseable ball joint ensures smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.

Product Specs

SKU: BLDV-BDS1665FSL
UPC: 840416403701
Condition: New
Front Lift Height: 2
Front Lift Method: Coil-Over
Rear Lift Height: 0"
Rear Lift Method: Stock
Recommended Tires & Wheels:

33 x 12.5 with 18 x 9 and 5 in. Backspace

<li>33 x 12.5 with 18 x 9 and 5 in. backspace</li> <li>33 x 12.5 with 20 x 9 and 5 in. backspace</li>
Shocks Included: Yes
Part Type: Suspension Lift Kit

Installation Details

Installation Time 3-4 hrs
Installation Difficulty Easy

Downloads

Installation Instructions Click here to Download
