BDS 5 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (23-25) 4WD | Diesel

SKU: BDS2246H
UPC: 840416434552
Condition: New
$2,449.46

Free Shipping to Continental US

Features

  • Complete bolt in installation.
  • Pro-Ride dual rate springs provide superior ride quality vs OEM springs.
  • Heavy Duty 4-Link control arms offer improved handling, stability and strength.
  • 4-Link suspension offers superior caster control through suspension travel.
  • Improved drivability from corrected geometry and steering angles.
  • Fabricated rear blocks provide a level stance from front to rear.

Manufacturer's Description

Raise the height of your Ford Super Duty diesel powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 tires.

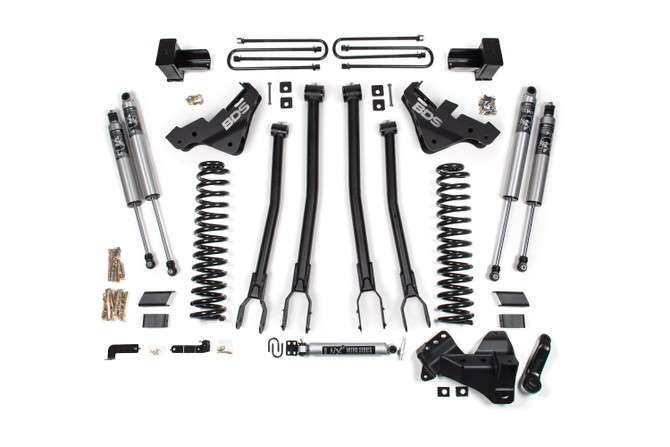

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Options

Rear Lift Option

Block Kit

  • Included in the base system.
  • Made of steel for high strength.
  • Designed to provide correct pinion angles.

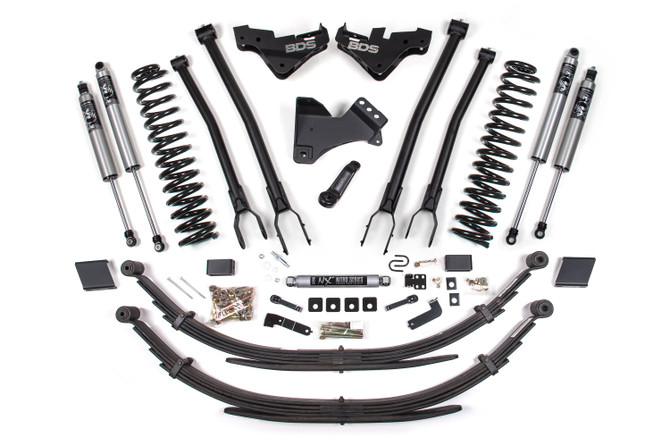

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Product Specs

SKU: BDS2246H
UPC: 840416434552
Condition: New
Front Lift Height: 5
Front Lift Method: Coil Spring
Part Type: Suspension Lift Kit
Rear Lift Height: 4
Rear Lift Method: Leaf Spring
Recommended Tires & Wheels: 37 x 12.5 with 17 x 9 and 5 in. backspace 37 x 12.5 with 20 x 9 and 5 in. backspace
Shocks Included: Yes
Variant Position: 1

Installation Details

Installation Time 8-10 hrs
Installation Difficulty Difficult
Installation Tools Cut-off Tool, Pitman Arm Puller
