BDS Suspension

BDS 6 Inch Lift Kit | Chevy/GMC 3/4 Ton Truck/Suburban (73-76) 4WD

SKU: BDS116H
UPC: 840416409772
Condition: New
$1,042.45

Free Shipping to Continental US

Product Details

Important Notes

  1. The 3/4 ton commonly came with a factory 56" eye to eye rear leaf spring. However, some were produced with a 52" rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
  2. If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
  3. #001608 come with OE style rubber bushings installed.
  4. Exhaust modification may be required to clear the front driveshaft.

Features

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • New steering arm maintains proper steering angles for improved handling
  • Cast steel blocks and add-a-leaf provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control

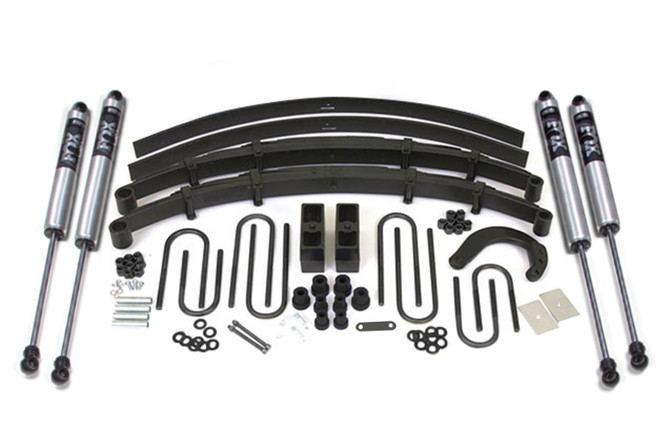

  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Manufacturer's Description

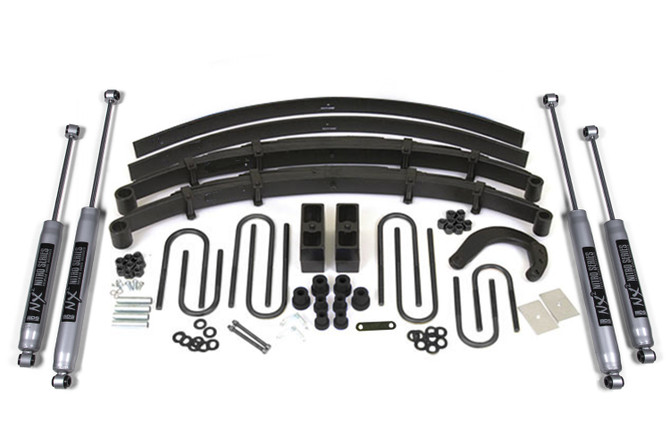

Take your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires.

Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Shipping & Returns
Fitment

Product Specs

SKU: BDS116H
UPC: 840416409772
Condition: New
Front Lift Height: 6
Front Lift Method: Leaf Spring
Rear Lift Height: 4.5"
Rear Lift Method:

Block

Springs
Recommended Tires & Wheels:
  • 36 x 12.5 with 15 x 8 and 3.5 in. backspace
    •
    Shocks Included: Yes
    Part Type: Suspension Lift Kit

    Installation Details

    Installation Time 5 hrs
    Installation Difficulty Moderate
    Installation Tools Ball Joint Separation Tool, Cut-off Tool
