BDS Suspension

BDS 6 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (15-19) 4WD

SKU: BDS731PSS
UPC: 840416434170
Condition: New
$4,933.65

Free Shipping to Continental US

Features

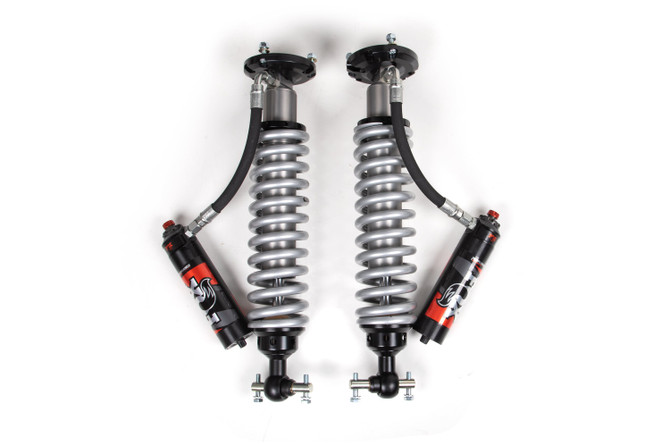

  • Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
  • The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
  • High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Manufacturer's Description

Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Options

Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the Cast Steel Control Arm kit. Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Product Specs

SKU: BDS731PSS
UPC: 840416434170
Condition: New
Front Lift Height: 6
Front Lift Method: Cross Member & Coil-Over
Part Type: Suspension Lift Kit
Rear Lift Height: 5
Rear Lift Method: Coil Spring
Recommended Tires & Wheels: 33 x 12.5 with 17 x 9 and 4.5 in. backspace 34 x 12.5 with 18 x 9 and 5 in. backspace 35 x 12.5 with 20 x 9 and 5.75 in. backspace
Shocks Included: Yes
Variant Position: 1

Installation Details

Installation Time 8-10 hrs
Installation Difficulty Difficult
Installation Tools Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment
