Important Notes
- Requires from bracket
modification and welding.
- No strut
disassembly required.
- Stock 18" wheels can
not be installed. factory
20" wheels with more
than 6.25" backspacing
can not be installed.
- Models with two piece
rear drive line would require
rear drive shaft
modification.
- Models equipped with 6
piston calipers will require
clearance machining on the
caliper near the bolt holes on
the mounting surface.
- Will NOT work
on TRD Pro
(Bilstein and Fox
Piggyback Strut)
models.
Features & Benefits
- Highly engineered
upper control arms
featuring 1.5" tubular
steel construction with
indexed ball joint to
provide maximum
travel with factory style
rubber bushings which
provide long lasting
maintenance free
operation.
- FOX 2.5 Performance
Elite series adjustable
coil overs for improved
ride quality,
performance, and
capability.
- High clearance crossmember
design maximizes ground
clearance
Robust steering knuckles
maintain ESC system compliance.
- HD skid plate
system improved
offroad protection.
- Multipoint differential
relocation brackets
to secure the front
axle and improve
CV angles.
- FOX
performance
series IFP
gas rear
shocks to
improved ride
and offroad
performance.
- Factory
Protection
Plus
drivetrain
warranty
included

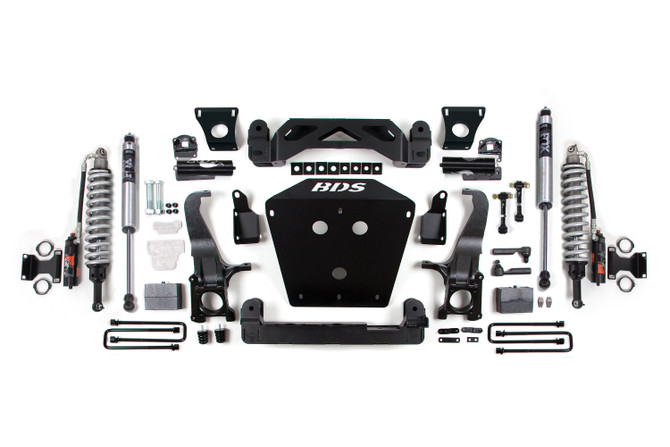

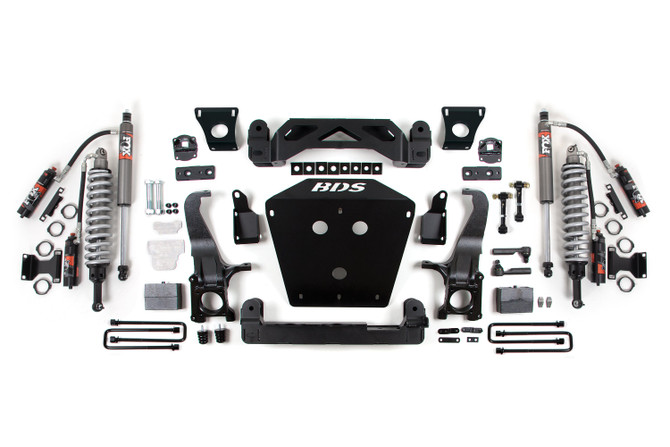

Unleash the full potential of your Toyota Tundra with the 7-inch Lift Kit, meticulously engineered to deliver uncompromising performance on and off the road. This kit combines BDS Upper Control
Arms, Steering Knuckles, and Fox Performance Elite Coil Overs and Rear Shocks, setting a new standard for durability, handling, and style.
BDS Upper Control Arms ensure optimal suspension geometry, enhancing wheel travel and articulation for seamless off-road navigation. Constructed from robust materials, they offer unmatched
strength to tackle rugged terrain with confidence.
Steering Knuckles are precision-engineered to maintain factory steering geometry, ensuring precise handling and reducing stress on components. This upgrade allows for increased ground
clearance and accommodates larger tires, perfect for conquering any obstacle in your path.
The inclusion of Fox Performance Elite Coil Overs and Rear Shocks elevates ride comfort and control to elite levels. Known for their advanced damping technology and race-proven reliability, these
shocks deliver smooth performance across varying terrain, from rocky trails to highways.
Visually striking and functionally superior, the 7-inch Lift Kit transforms your Tundra's appearance with a commanding stance and aggressive profile. It not only enhances off-road capability but also
maintains on-road comfort, making it ideal for daily driving and weekend adventures alike.
Whether you're a seasoned off-road enthusiast or exploring new trails, the Toyota Tundra 7-inch Lift Kit with BDS Upper Control Arms, Steering Knuckles, and Fox Performance Elite Coil Overs and
Rear Shocks ensures unparalleled performance and durability. Elevate your driving experience today and embrace the limitless possibilities of exploration and adventure.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 6.25in. Backspace
- 37 x 12.5 with 20 x 9 and 6.25in. Backspace
Rear Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
