BDS Suspension

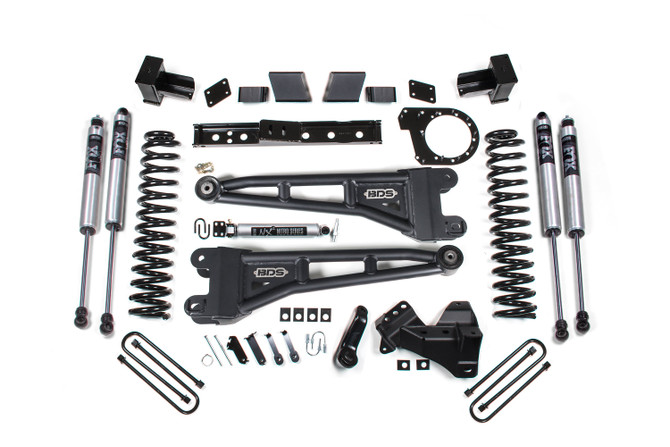

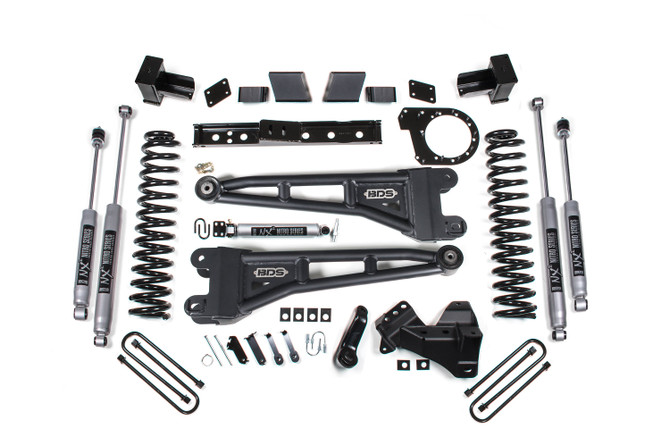

BDS 7 Inch Lift Kit w/ Radius Arms | Ford F350 Super Duty DRW (23-25) 4WD | Diesel

SKU: BDS2260H
UPC: 840416435573
Condition: New
$2,013.54

Free Shipping to Continental US

Features

  • 100 % bolt-on installation.
  • Pro-Ride Dual rate coil springs provide a remarkable ride through any terrain.
  • Heavy Duty tubilar steel radius arms which correct casterh while maximizing ground clearance.
  • Track bar relocation bracket and pitman arm to maintain proper steering angles for improved handling.
  • Fabricated steel blocks provide level stance front to rear.
  • Shock options from NX2 to Fox Performance Elite with DSC and everyting in between.

Manufacturer's Description

Take your Ford Super Duty diesel truck to the next level with this 7-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Options

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Product Specs

SKU: BDS2260H
UPC: 840416435573
Condition: New
Front Lift Height: 7
Front Lift Method: Coil Spring
Part Type: Suspension Lift Kit
Rear Lift Height: 5
Rear Lift Method: Block
Recommended Tires & Wheels: 38 x 13.5 with 17 x 10 and 5 in. backspace 38 x 13.5 with 18 x 10 and 5 in. backspace 38 x 13.5 with 20 x 10 and 5 in. backspace
Shocks Included: Yes
Variant Position: 1

Installation Details

Installation Time 6-8 hrs
Installation Difficulty Difficult
Installation Tools 30mm Socket, 40mm Socket, Basic Hand Tools, Cut-off Tool, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller
