JKS Manufacturing

JKS 2.5" Lift Kit | J-Krawl | DIESEL | Wrangler JL 4-door

SKU: JSPEC169KFA
UPC: 788000424537
Condition: New
$2,834.45

Free Shipping to Continental US

Important Notes

  1. Factory wheels cannot be reinstalled without wheel spacers
  2. HD front springs recommended for applications with aftermarket winch/bumper combo
  3. HD rear springs recommended for applications with rear mounted full size spare tire
  4. Front Aftermarket driveshaft is required due to additional travel capability
  5. Will not fit 4xe models
  6. Will not fit Rubicon 392 models

Features

  • Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.

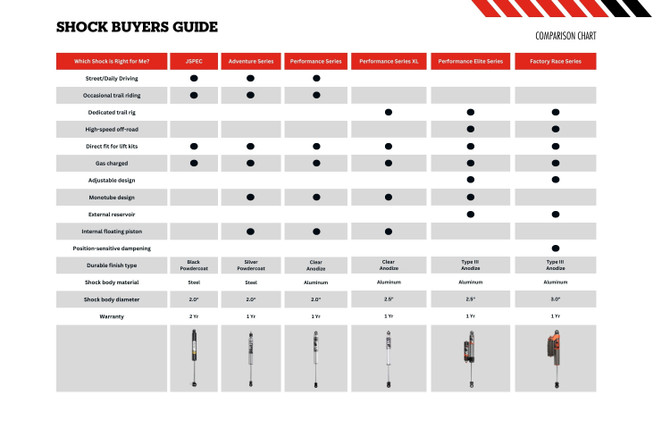

  • Front/Rear Gas Shocks (FOX AdventureSeries, FOX 2.0 Performance Series, FOX 2.0 Remote Reservoir, FOX 2.5Performance Elite, or FOX 3.0 Factory Race Series) specifically valved for this suspension system for improvedperformance on and off-road.

  • Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off-road articulation.
  • Front/Rear Bump Stop Extensions to properly limit suspension up travel.
  • Front/Rear J-Flex or J-Link Upper Control Arms to add strength and adjustability.
  • Front/Rear J-Flex or J-Link Lower Control Arms to add strength and adjustability.

Manufacturer's Description

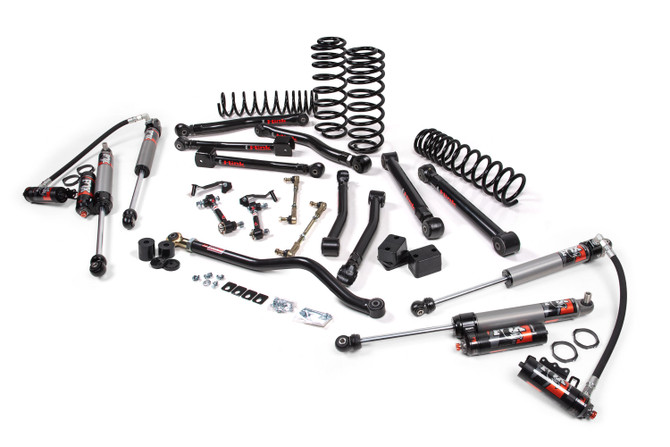

Build the ultimate rock crawling Diesel 4-Door Jeep Wrangler JL with a J-Krawl 2.5" lift kit suspension system. The complete system is designed for maximum articulation, strength and adjustability. Components include J-Flex or J-Link Upper and Lower Control Arms, JSPEC dual rate coil springs, custom-valved shock options tailored to your needs, including FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.5Performance Series,FOX 2.5 Elite Series and FOX 3.0 Factory Race Series shocks, an adjustable front track bar, a rear track bar bracket, Quicker Disconnect front sway bar end links, and bump stop extensions. J-Krawl builds off Jeep’s factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires. You'll be impressed with the stability and compression/rebound response. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.

Product Specs

SKU: JSPEC169KFA
UPC: 788000424537
Condition: New
Front Lift Height: 2.5
Front Lift Method: Coil Spring
Rear Lift Height:

2.5"

2.5
Rear Lift Method: Coil Spring
Shocks Included: Yes
Part Type: Suspension Lift Kit

Installation Details

Installation Time 7-9 hrs
Installation Difficulty Difficult

Downloads

Installation Instructions Click here to Download
Miscellaneous Documentation 1 Click here to Download
