JKS Manufacturing

JKS 2.5" Lift Kit | J-Krawl | Wrangler JL 4-door

SKU: JSPEC125KFA
UPC: 810163870200
Condition: New
$2,834.45

Free Shipping to Continental US

Important Notes

  1. Factory wheels cannot be reinstalled without wheel spacers
  2. HD front springs recommended for applications with aftermarket winch/bumper combo
  3. HD rear springs recommended for applications with rear mounted full size spare tire
  4. Front aftermarket driveshaft strongly recommended due to additional travel capability
  5. Will not fit 4xe models
  6. Will not fit Rubicon 392 models

Features

  • Front/Rear Dual Rate Coil Springs (standard or HD) designed to great ride quality across any terrain.
  • HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.

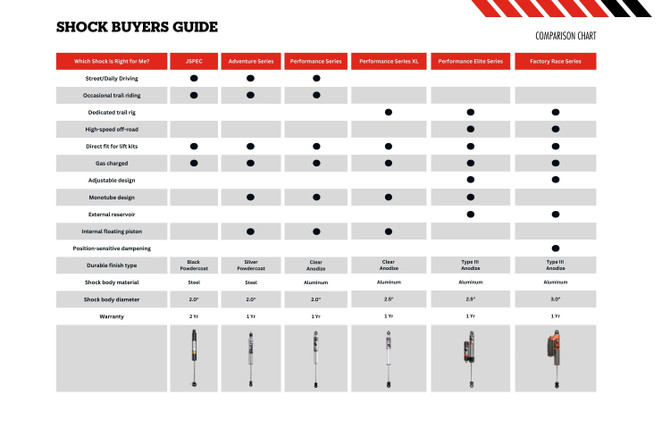

  • Front/Rear Gas Shocks (FOX AdventureSeries, FOX 2.0 Performance Series, FOX 2.0 Remote Reservoir, FOX 2.5Performance Elite, or FOX 3.0 Factory Race Series) specifically valved for this suspension system for improvedperformance on and off-road.

  • Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
  • Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off-road articulation.
  • Front/Rear Bump Stop Extensions to properly limit suspension up travel.
  • Front/Rear J-Flex Upper Control Arms to add strength and adjustability.
  • Front/Rear J-Flex Lower Control Arms to add strength and adjustability.

Manufacturer's Description

Turn your 4 Door Jeep Wrangler JL into a serious off road rig with a JKS J-Krawl 2.5" lift kit. Designed for maximum articulation and adjustability, the complete suspension system includes dual rate coil springs, adjustable front track bar, rear track bar bracket and tuned FOX shocks. The heart of the J-Krawl design is a set of J-Flex or J-Link upper and lower control arms and sway bar Quicker disconnects. These systems build off Jeep's factory suspension mounting points and upgrades to front and rear, upper and lower J-Flex or J-Link adjustable control arms for maximum articulation along with more strength for trails and rock crawling brawn along with adjustability to dial in front caster, rear pinion and overall vehicle wheelbase. In addition to eight high strength adjustable control arms, the J-Krawl system features specially designed shock options tailored to your needs, including FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.5Performance Series, FOX 2.5 Elite Series and FOX 3.0 Factory Race Series shocks to maximize travel and performance. An aftermarket front driveshaft is strongly recommended due to additional travel capable. Routine maintenance is required.

Product Specs

SKU: JSPEC125KFA
UPC: 810163870200
Condition: New
Front Lift Height: 2.5
Front Lift Method: Coil Spring
Rear Lift Height:

2.5"

2.5
Rear Lift Method: Coil Spring
Shocks Included: Yes
Part Type: Suspension Lift Kit

Installation Details

Installation Time 6-8 hrs
Installation Difficulty Moderately Easy

Downloads

Installation Instructions Click here to Download
Miscellaneous Documentation 1 Click here to Download
