Important Notes
- Diesel models may achieve up to 1” less lift height.
- Factory wheels cannot be reinstalled without wheel spacers.
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire.
- Front aftermarket driveshaft strongly recommended due to additional travel capability.
- Will not fit Rubicon 392 models
Features & Benefits
- Maximizes available droop travel while retaining OE JT Mojave FOX IBP shocks at 0-2.5"" of lift.
- 3/16" steel design provides great strength and durability.
- Bolt-on for easy install.

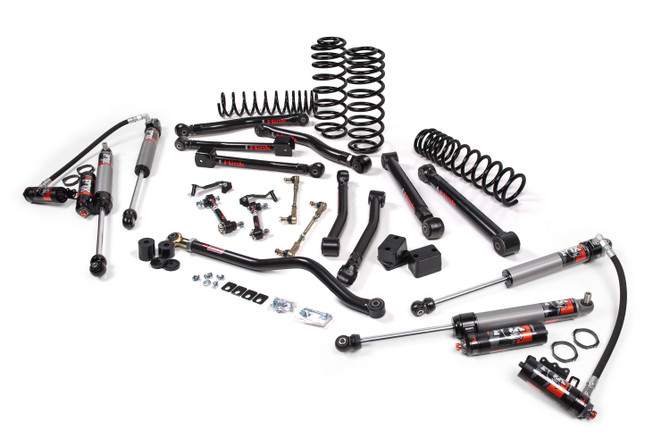

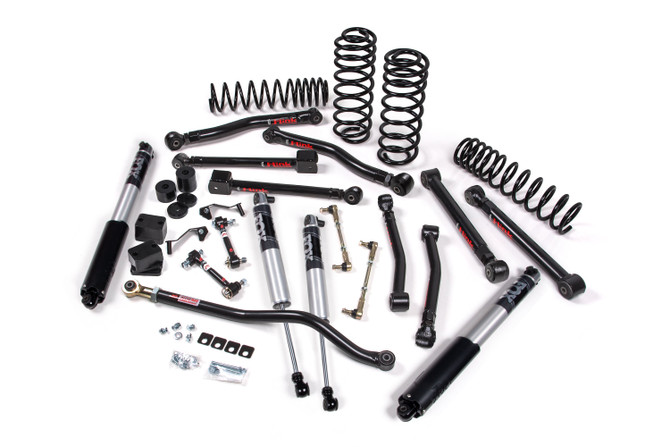

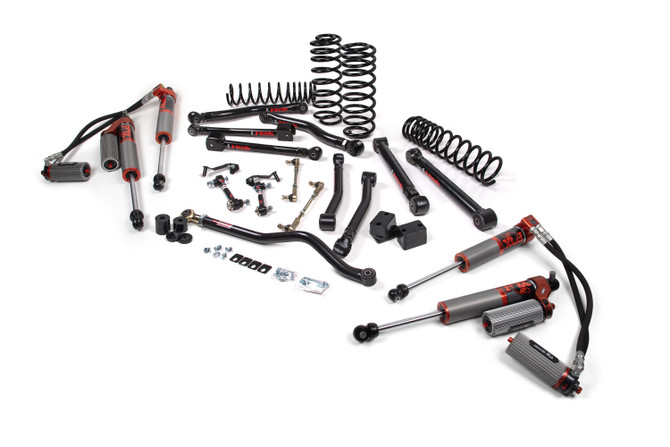

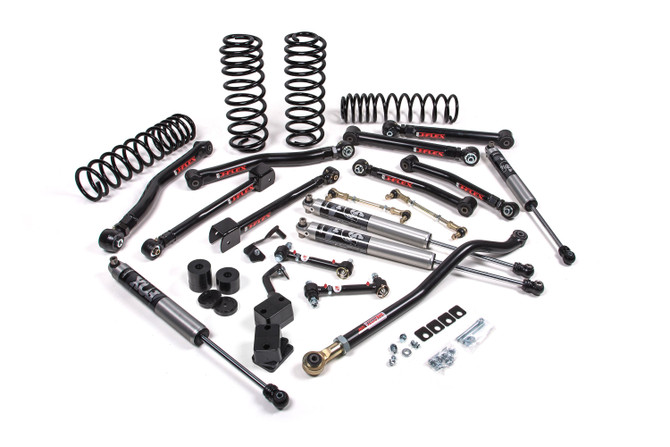

Turn your Jeep Wrangler JL into a serious off road rig with a JKS J-Krawl 3.5" lift kit. Designed for maximum articulation and adjustability, the complete suspension system includes dual rate coil springs, adjustable front track bar, rear track bar bracket and tuned FOX shocks. The heart of the J-Krawl design is a set of J-Flex upper and lower control arms and sway bar Quicker disconnects. These systems build off Jeep’s factory suspension mounting points and upgrades to front and rear, upper and lower J-Flex adjustable control arms for maximum articulation along with more strength for trails and rock crawling brawn along with adjustability to dial in front caster, rear pinion and overall vehicle wheelbase. In addition to eight high strength adjustable control arms, the J-Krawl system features your selection of Fox 2.0 Performance Series shocks to maximize travel and performance. An aftermarket front driveshaft is strongly recommended due to additional travel capable.
J-Krawl systems are J-Rated™ for hardcore rock crawling along with road and trail use. Routine maintenance required.
Tire Specs
Rubicon Models (all kits)
Tire: 37x12.50
Wheel: 17x9, 18x9, 20x9
Backspacing: 5"
Non-Rubicon Models (all kits)
Tire: 35x12.50
Wheel: 17x9, 18x9, 20x9
Backspacing: 5"
Other tire/wheel sizes can be used, however may require additional modifications.
