Zone Offroad
Zone 3 Inch Lift Kit | Ford F150 (15-20) 4WD
SKU:
FQMS-ZONF66F
UPC:
810156366383
Condition:
New
$902.85 - $1,032.85
Free Shipping to Continental US
Important Notes
- Preload ring may not work with aftermarket struts, designed to be used with OEM struts Strut compessor required for installation.
- Will fit EcoBoost models.
- Will fit on diesel models, but may result in a lower ride height.
- Will not fit Raptor models
- Maximum 5.5" BS wheels recommended (due to wheel/tire clearance to the UCAs)
- This kit will not work on trucks with stock ride height over 22in. (FX4, Snow Prep, and other off-road packages may have a stock ride height over 22in)
Features & Benefits
- High strength UCAs are boxed and fully welded, specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
- Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle, retain factory ride quality without over extending suspension/drivelines at full suspension droop.
- Maintains ride and handling characteristics with clearance for larger tires 2" replacement rear lift blocks and heavy duty u-bolts to level the stance.
- Optional Nitro series gas or FOX 2.0 Adventure series gas rear shocks to improve performance "
Looking to get more out of your 2015-2020 Ford F150 without going all in on a full 4" or 6" suspension system? These 3" Adventure Series lift kits are designed to be more than a leveling kit and work with the factory suspension mounting points to improve ground clearance, allow room for larger tires and improve your truck's capability.
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

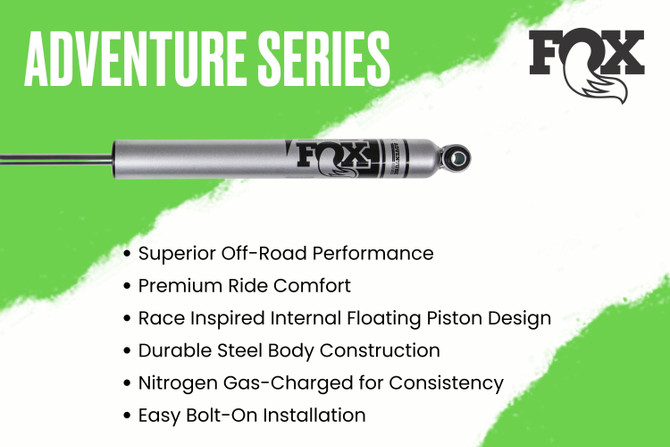

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Product Specs
SKU:
FQMS-ZONF66F
UPC:
810156366383
Condition:
New
Front Lift Height:
3
Front Lift Method:
Strut Spacer
Rear Lift Height:
1
Rear Lift Method:
Block
Recommended Tires & Wheels:
35 x 12.5 with 18 x 9 and 5.5 in. Backspace
35 x 12.5 with 20 x 9 and 5.5 in. Backspace
Shocks Included:
Yes
Installation Details
Installation Time
3-4 hrs
Installation Difficulty
Moderate
Installation Tools
Strut Compressor
