Important Notes
- Does not fit Dually Models with 8-bolt transmissions (Aisin).
- T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering.
- Will NOT fit Cab and Chassis models.
- Will NOT fit rear air-ride equipped models.
- Diesel models only.
- Will NOT Fit Mega Cab Aisin Transmissions (8-bolt).
- Vehicles with a Manual Shift Transfer Case require a Manual T-Case Indexing Kit. Add ZOND5409 in kit configuration.
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
Features
- High strength progressive rate front coil springs for a great ride on any terrain.
- HD radius arm drop brackets to correct suspension geometry.
- HD track bar relocation bracket to correctly position front axle under the truck.
- Forged drop pitman arm to correct steering angles.
- Front sway bar correction to maintain handling performance.
- HD transmission crossmember and t-case indexing ring to correct front driveline angles.
- Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performanceAllows clearance for up to 37" tires
Manufacturer's Description
Take your RAM 3500 to new heights with this 4.5" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires
Options
Rear Axle Option
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
Indexing Ring Option
6 Bolt Indexing Ring
- Kits come standard with 6-Bolt indexing ring kit.
8 Bolt Indexing Ring
- Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
- The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

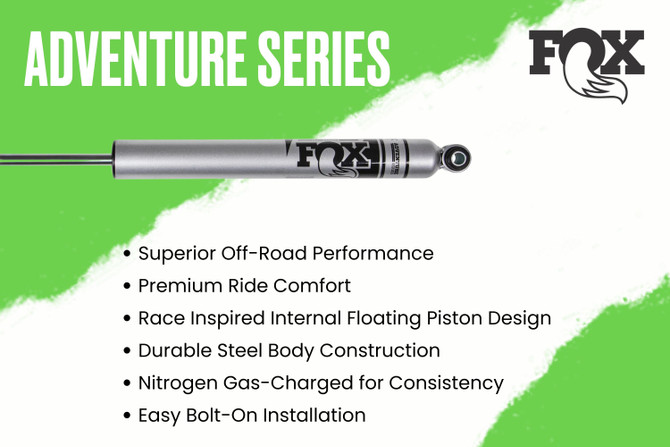

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
