Zone Offroad
Zone 4 Inch Lift Kit | Dodge Ram 1500 (09-11) 4WD
SKU:
ZOND1N
UPC:
810156368110
Condition:
New
$1,653.65
Free Shipping to Continental US

Important Notes
- Does NOT work with all wheel drive (AWD) models.
- These trucks are typically between 1" and 3" tail high from the factory.
- Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
- Not recommended for AWD models.
Features
- Heavy-duty differential skid slate improves off-road protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Maintains factory ride quality and handling characteristics.
- Rear 2" spacers or 3" coil springs available to achieve desired stance (see important notes).
- Top-mount strut spacers set ride height, maintain ride quality, and are easy to install.
Manufacturer's Description

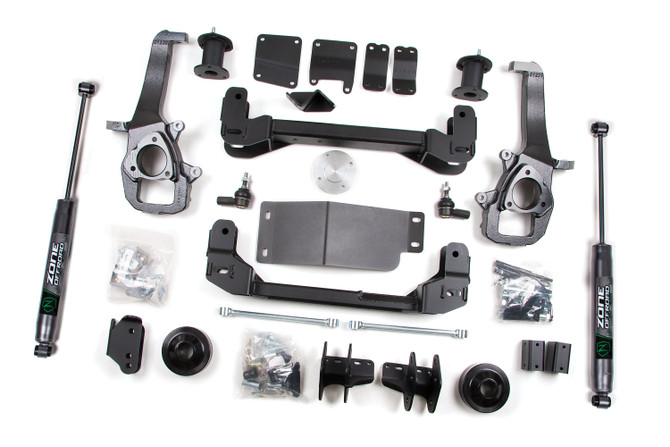

Take your Ram 1500 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear coil spacers to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
Options
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

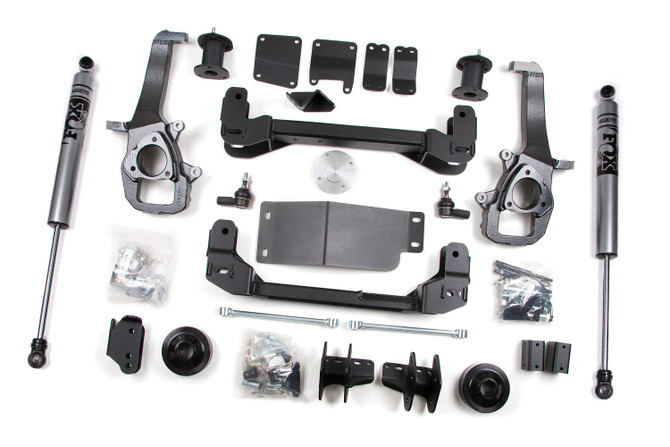

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
Product Specs
SKU:
ZOND1N
UPC:
810156368110
Condition:
New
Front Lift Height:
4"
Front Lift Method:
Cross Member & Strut Spacer
Rear Lift Height:
4"
Rear Lift Method:
Coil Spring
Recommended Tires & Wheels:
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace <li>35 x 12.5 with 17 x 9 and 4.5 in. backspace</li> <li>35 x 12.5 with 18 x 9 and 5 in. backspace</li> <li>35 x 12.5 with 20 x 9 and 5 in. backspace</li>
Shocks Included:
Yes
Part Type:
Suspension Lift Kit
Variant Position:
1
Installation Details
Installation Time
9 hrs
Installation Difficulty
Moderate
