Zone Offroad
Zone 4 Inch Lift Kit | Ford F150 (21-25) 4WD
SKU:
FQMS-ZONF91F
UPC:
810156366871
Condition:
New
$1,394.60 - $1,525.60
Free Shipping to Continental US
Important Notes
- Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.
- Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
- Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
- Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
- Will not work with trucks equipped with CCD (Continuous Controlled Damping)
- Does not fit diesel models.
- Will not fit Tremor models.
- Requires frame bracket modification
Wheel and Tire:
- 18" or larger diameter wheels required.
- Stock 17" and 18" wheels cannot be reinstalled.
- Stock 20" wheels can be used with up to a 305/60R20 tire.
- 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
- 18 - 20"wheels with 5.5-5.75" of backspacing is highly recommended for tire to frame crash bar clearance.
- 37" tires will require crash bar modification
Features & Benefits
- Kit design optimizes ground clearance and improves off-road protection.
- Maintains drive-ability and handling by correcting suspension, steering and drive-line geometry.
- Redesigned steering knuckles specific to the 2021-2025 F150 to maintain ESC system compliance 2" or 3" replacement rear lift blocks available to achieve desired stance without the need to stack lift blocks.
- Kits includes Factory Protection Plus (ESC system compatibility,
- Limited lifetime warranty, 5yr-60k mile drivetrain warranty)
- Kit allows clearance for 35" tires
- Functions with Blue Cruise

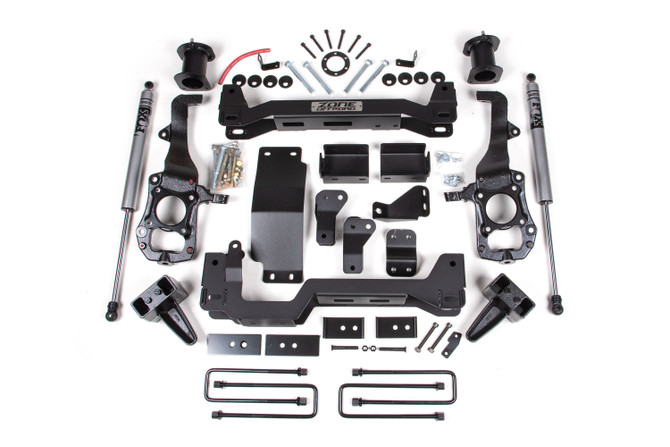

Take your 21-25 F150 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Engineered to the highest standard to maintain ride quality and handling performance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
For more info on the 6" lift kits head to, click here.
Rear Lift Option
3 Inch Block Kit
- Level to tail high appearance
2 Inch Block Kit
- Tail low to level stance
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Product Specs
SKU:
FQMS-ZONF91F
UPC:
810156366871
Condition:
New
Front Lift Height:
4
Front Lift Method:
Cross Member & Strut Spacer
Rear Lift Height:
3
2
Rear Lift Method:
Block
Recommended Tires & Wheels:
35 x 12.5 with 20 x 9 and 5 in. Backspace
295 / 70 with 20 x 9 and 5.5 in. Backspace
Shocks Included:
Yes
Installation Details
Installation Time
8-10 hrs
Installation Difficulty
Difficult
