Zone Offroad
Zone 5.5 Inch Lift Kit | Ram 3500 (19-24) 4WD | Gas
SKU:
ZOND119N
UPC:
810156362194
Condition:
New
$1,379.55
Free Shipping to Continental US
Important Notes
- T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering.
- Will not fit Cab and Chassis models.
- Will NOT fit rear air-ride equipped models
- Will NOT Fit Mega Cab Aisin Transmissions (8-bolt).
- Does not fit Vehicles with a Manual Shift Transfer Case.
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
Features
- High strength progressive rate front coil springs for a great ride on any terrain.
- Heavy duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster.
- HD track bar relocation bracket to correctly position front axle under the truck.
- Forged drop pitman arm to correct steering angles.
- Front sway bar correction to maintain handling performance.
- HD transmission crossmember and t-case indexing ring to correct front drive-line angles.
- Nitro series gas or FOX adventure series IFP gas shocks to improved ride and off-road performance.
- Allows clearance for up to 37" tires
Manufacturer's Description

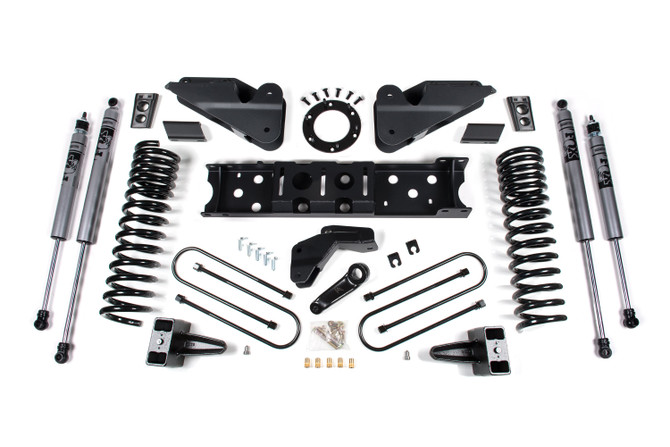

Take your RAM 3500 to new heights with this 5.5" standard lift kit from Zone Offroad. Kits include everything needed from full length coil springs and radius arm drop brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
Product Specs
SKU:
ZOND119N
UPC:
810156362194
Condition:
New
Front Lift Height:
5.5"
Front Lift Method:
Coil Spring
Rear Lift Height:
5"
Rear Lift Method:
Block
Recommended Tires & Wheels:
37 x 12.5 with 20 x 9 and 5.5 in. Backspace
<li>37 x 12.5 with 20 x 9 and 5.5 in. backspace</li> <li>37 x 12.5 with 18 x 9 and 5.5 in. backspace</li>
Shocks Included:
Yes
Part Type:
Suspension Lift Kit
Variant Position:
1
Installation Details
Installation Time
6 hrs
Installation Difficulty
Difficult
Installation Tools
Wrenches: Standard
