Zone Offroad

Zone 5 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (20-22) 4WD | Gas

SKU: FQMS-ZONF61F
UPC: 810156366239
Condition: New
$1,306.45 - $1,566.45

Free Shipping to Continental US

Important Notes

  1. GAS MODELS ONLYFront exhaust modification may be required to clear front drive shaft.
  2. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  3. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
  4. Fits SRW models only

Wheel and Tire:

  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size.

Features

  • Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance.
  • Forged pitman arm to correct steering angles.
  • Heavy duty fabricated track bar relocation bracket to re-center front axle.
  • Full length Diesel/ Gas specific coil springs for a smooth ride

Manufacturer's Description

Zone Offroad now offers a suspension lifts for the 2020-2022 Ford F250/F350 Super Duty 4WD trucks. These new 5" lift kits are available for gas and diesel applications, as well as offered in standard (radisu arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Options

Shock Option

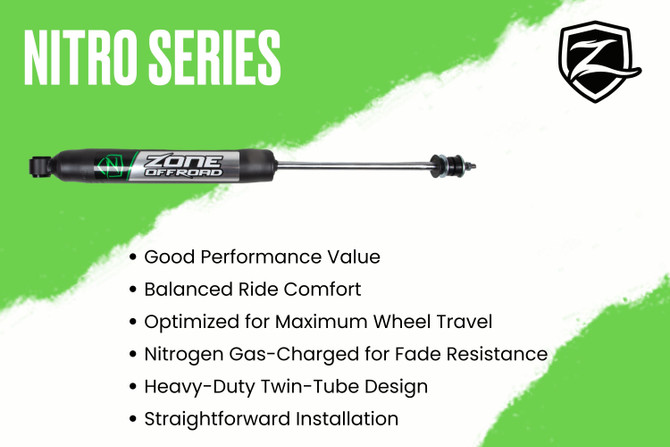

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

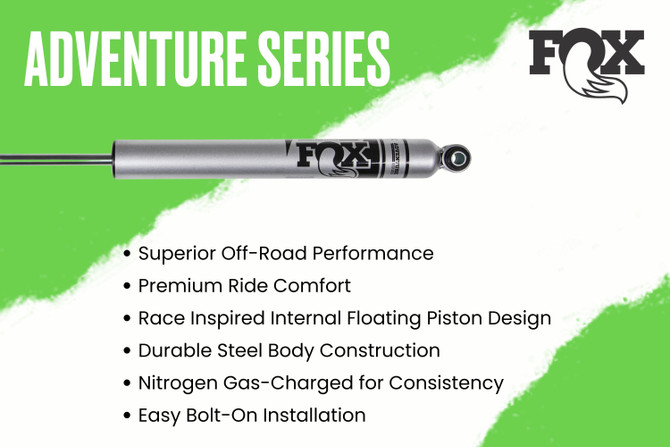

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Product Specs

SKU: FQMS-ZONF61F
UPC: 810156366239
Condition: New
Front Lift Height: 5"
Front Lift Method: Coil Spring & Radius Arm
Rear Lift Height: 3"
Rear Lift Method: Block
Recommended Tires & Wheels:

37 x 12.5 with 20 x 9 and 4.5 in. Backspace

<li>37 x 12.5 with 20 x 9 and 4.5 in. backspace</li> <li>37 x 12.5 with 18 x 9 and 4.5 in. backspace</li>
Shocks Included: Yes
Part Type: Suspension Lift Kit
Variant Position: 1

Installation Details

Installation Time 4-6 hrs
Installation Difficulty Moderate
Installation Tools Wrenches: Standard
