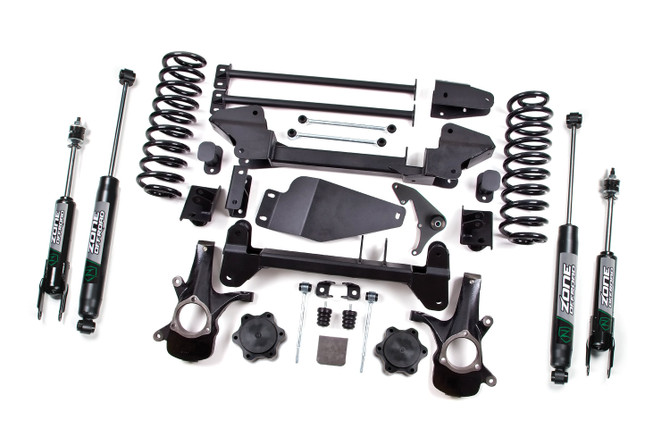

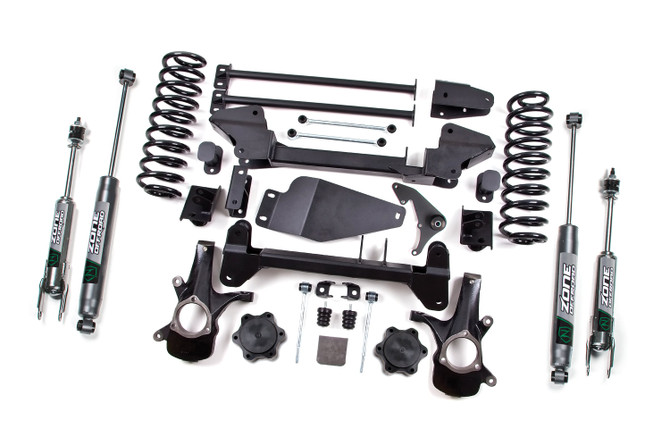

Zone 6 Inch Lift Kit | Chevy/GMC Avalanche, Suburban, Tahoe, Or Yukon 1500 (99-06) 4WD

SKU: ZONC7N
UPC: 810156369995
Condition: New
$1,752.65

Free Shipping to Continental US

Important Notes

  1. Does NOT work with all wheel drive (AWD) models.
  2. Will not fit vehicles equipped with Auto-Ride.
  3. Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
  4. Stock tires & wheels can be installed back on the vehicle, but larger tires can NOT be installed on factory wheels.
  5. Always check for wheel and tire clearance before driving the vehicle.

Features

  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, CNC machined, replacement Steering Knuckles improve strength while correcting steering angles.
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles.

Manufacturer's Description

When you go big you can go anywhere. This 6" Lift Kit puts your SUV into a class of its own, letting you clear 35" tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your 4WD 2000 - 2006 Chevy/GM 1500 SUV.

Options

Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish

Product Specs

SKU: ZONC7N
UPC: 810156369995
Condition: New
Front Lift Height: 6
Front Lift Method: Cross Member & Torsion Drop
Rear Lift Height: 5.25''
Rear Lift Method: Coil Spring
Recommended Tires & Wheels:

33 x 12.5 with 17 x 9 and 4.5 in. Backspace

34 x 12.5 with 18 x 9 and 5 in. Backspace <li>33 x 12.5 with 17 x 9 and 4.5 in. backspace</li> <li>34 x 12.5 with 18 x 9 and 5 in. backspace</li> <li>35 x 12.5 with 20 x 9 and 5.75 in. backspace</li>
Shocks Included: Yes
Part Type: Suspension Lift Kit
Variant Position: 1

Installation Details

Installation Time 8 hrs
Installation Difficulty Moderate
Installation Tools Torsion Bar Unloading Tool
