Zone 7 Inch Lift Kit | Ford F250/F350 Super Duty (20-22) 4WD | Diesel
SKU:
ZONF62N
UPC:
810156366260
Condition:
New
$1,214.55
Free Shipping to Continental US

Important Notes
- DIESEL MODELS ONLY
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
- Fits SRW models only
Wheel and Tire:
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory / original equipment tire size.Â
Features
- Corrects suspension geometry with high strength radius arm drop brackets.
- Forged pitman arm to correct steering angles.
- Heavy duty fabricated track bar relocation bracket to re-center front axle.
- Full length Diesel/ Gas specific coil springs for a smooth ride
Manufacturer's Description
Step up your game with these 7" standard lift kits from Zone Offroad. These kits use full length coil springs, high strength radius arm relocation brackets, steering and sway bar correction along with rear lift to level the stance and optional shocks. Kits include a 5year/60,000mile drivetrain warranty.
Options
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

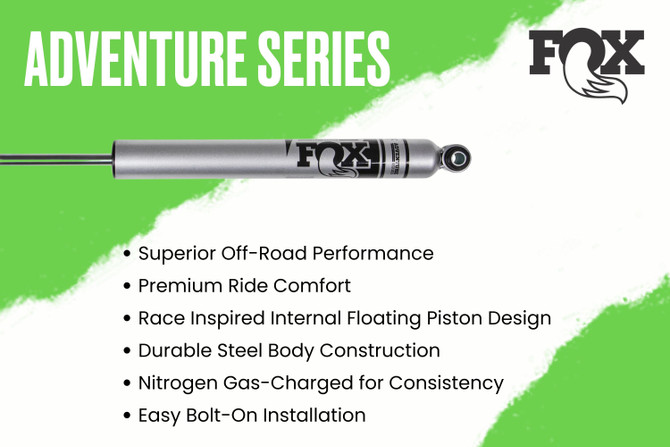

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Product Specs
SKU:
ZONF62N
UPC:
810156366260
Condition:
New
Front Lift Height:
7"
Front Lift Method:
Coil Spring & Drop Bracket
Rear Lift Height:
5"
Rear Lift Method:
Block
Recommended Tires & Wheels:
37 x 12.5 with 20 x 9 and 4.5 in. Backspace
<li>37 x 12.5 with 20 x 9 and 4.5 in. backspace</li> <li>37 x 12.5 with 20 x 10 and 4.5 in. backspace</li>
Shocks Included:
Yes
Part Type:
Suspension Lift Kit
Variant Position:
1
Installation Details
Installation Time
4-6 hrs
Installation Difficulty
Moderate
Installation Tools
Wrenches: Standard
